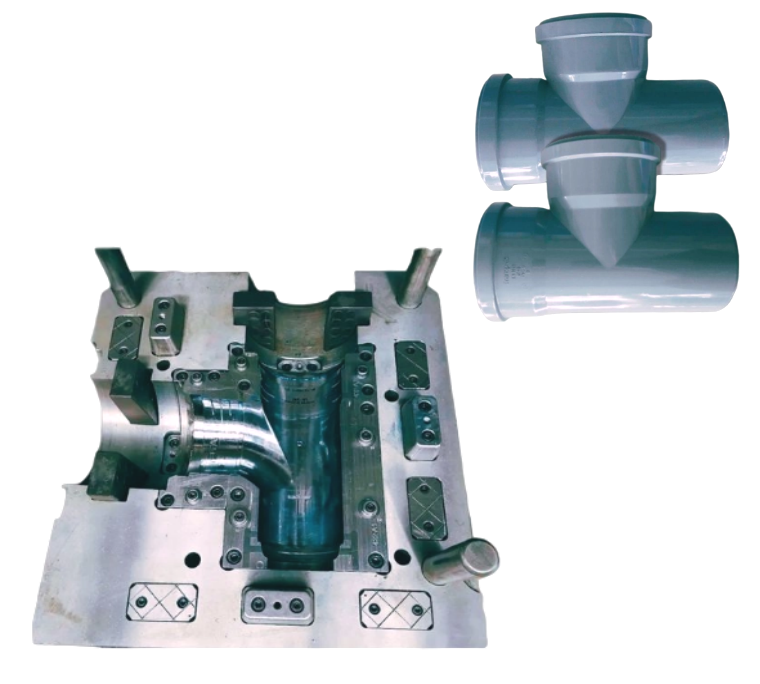

Product Name : PVC PIPE FITTING MOULD COLLAPSIBLE TEE
Fitting Size ： 32mm/40mm/ 50mm/75mm/90mm/110mm/160mm...
Fitting Standard: EN1401 /EN1329
Moulding Mateial : PVC
Cavity Number :1/2/4/8...
Steel of core and caity : Germany Steel 1.2316 /China1.2316/4Cr13/3Cr13 /P20 chromed
Steel of Mould Base : S50C/S45C/LKM
Mould life :1000000 Shots
Core Pulling :Hydraulic Motor
Gate System: Side gate
Features :
HUIDA has many different types of Collapsible core system
Fititng ranges from 32mm to 600mm
Patented collapsible core system enable the fitting to be demoulded smoothly
Guarantee high precision , wiht long-time mould life, flash-free and flawless fitting
Company Profile
Taizhou Huangyan Huida Plastic Machinery Co.,Ltd was established in 1989.We have been devoting to the pipe fitting mould’s design and manufacture for more than 29 years.We have particular experience in producing customized plastic pipe fittings.Including sanitary and drainage system,potable water supply,roof drains.irragation,and gas supply with material of PVC,PPR,PP,HDPE,ABS,PPSU etc.Therefore,we have won the trust from over 200 customers in more than 60 countries around the world.
