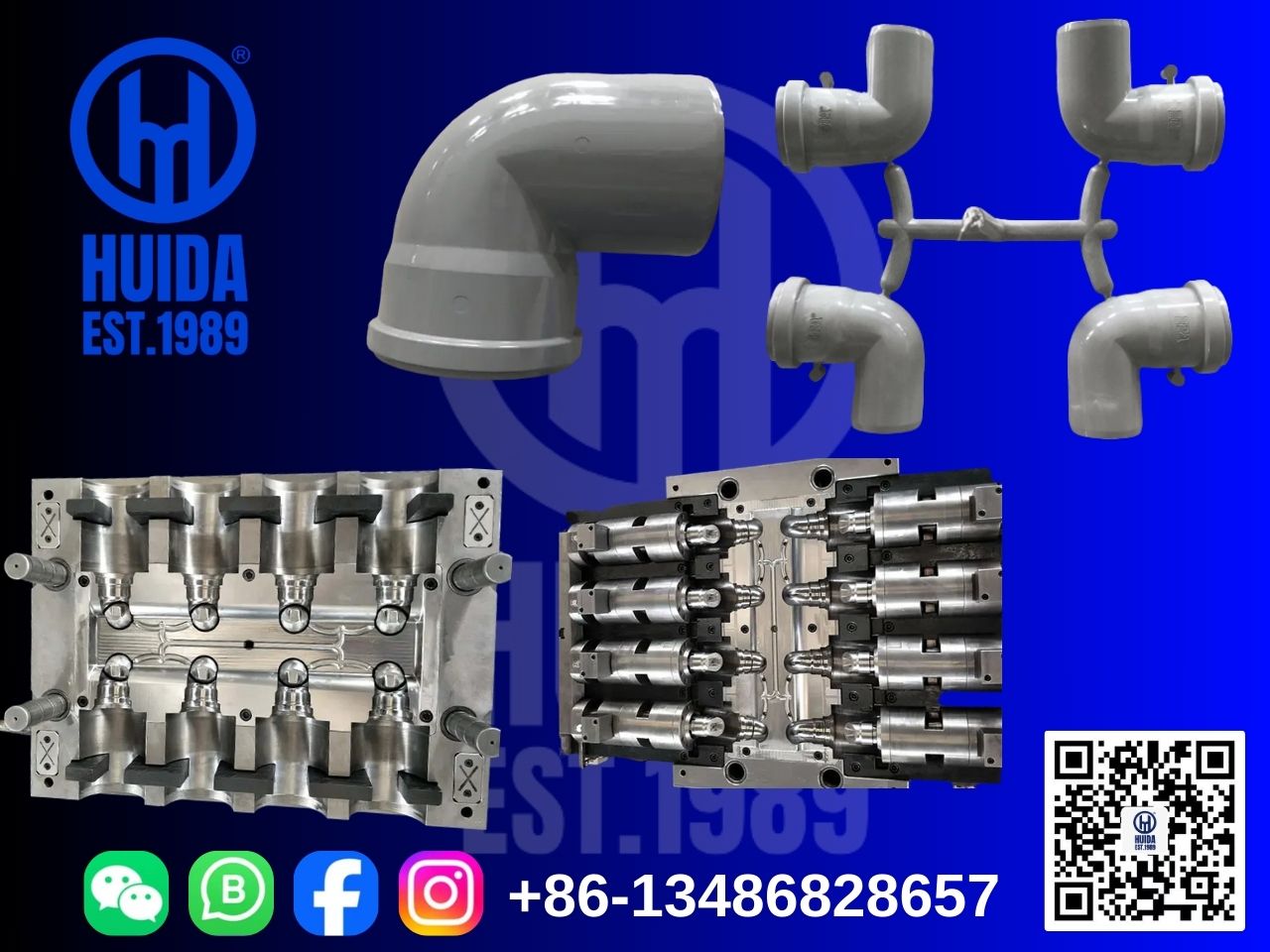

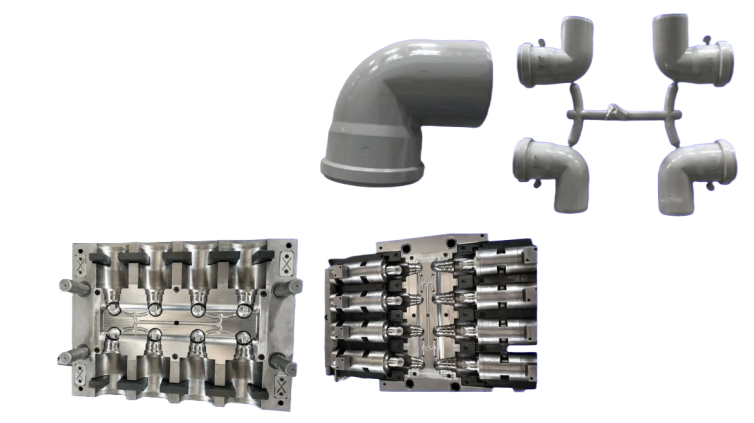

PVC collapsible elbow 90 pipe fitting mould

Quantity:
Product Description

Product name :  PVC collapsible elbow 45 pipe fitting mould

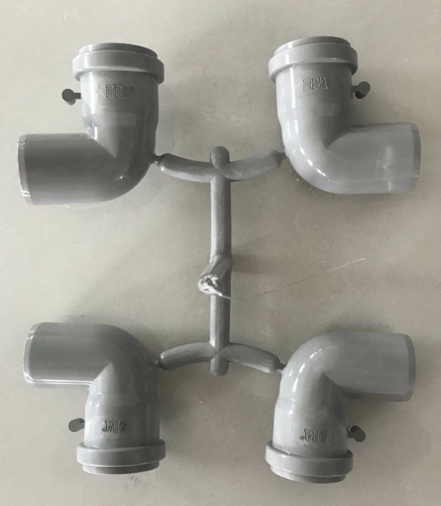

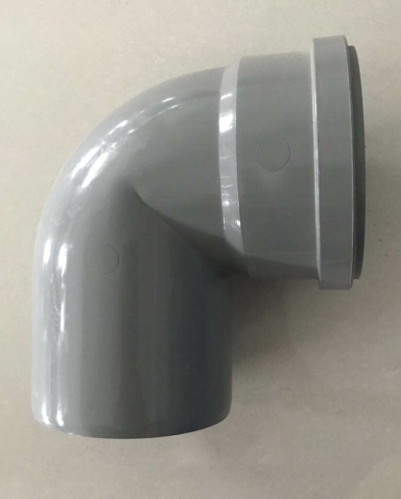

图片1图片2

Fitting size :  32mm/40mm/ 50mm/75mm/90mm/110mm/160mm...

Fitting standard: EN1401 /EN1329

Moulding mateial :PVC

Cavity number :1/2/4...

Steel of core and caity : Germany steel 1.2316 /China1.2316/4Cr13/3Cr13 /P20 chromed

Steel of mould base : S50C/S45C/LKM

Mould life :1000000 shots

Core pulling :Hydraulic motor

Gate system: side gate



Features :

HUIDA has many different types of collapsible core system

Fititng ranges from 32mm to 600mm

Patented collapsible core system enable the fitting to be demoulded smoothly

Guarantee high precision , wiht long-time mould life, flash-free and flawless fitting



Company Profile




Taizhou Huangyan Huida Plastic Machinery Co.,Ltd was established in 1989.We have been devoting to the pipe fitting mould’s design and manufacture  for more than 29 years.We have particular experience in producing customized plastic pipe fittings.Including sanitary and drainage system,potable water supply,roof drains.irragation,and gas supply with material of  PVC,PPR,PP,HDPE,ABS,PPSU etc.Therefore,we have won the trust from over 200 customers in more than 60 countries around the world.










Huida Mould has been devoting to the pipe fitting mould design and manufacture more than 30 years. We have particular experience in producing customized plastic pipe fittings.
